"Monozukuri" mainly by 3D design

3D design is mainly used for production, with CATIA V5 and analysis software (JSTAMP).

■ 3D design

■ Virtual trial

■ Formability analysis

■ Quality control by 3D coordinate measuring machine

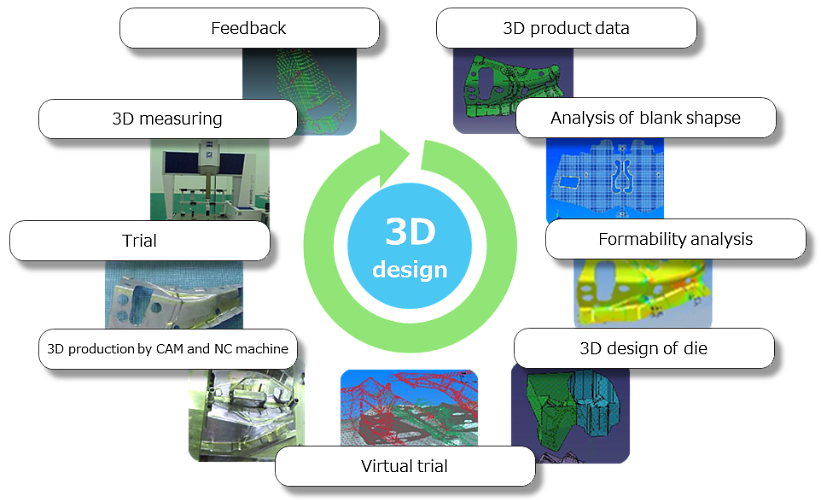

Production flow mainly by 3D design

• �@　The blank shape and forming condition are analyzed using 3D data including CATIA.

• �A　The die is designed in 3D based on the analysis result.

• �B　By the preliminary simulation, problems in parts shape and so on are detected.

• �C　High-precision 3D processing is achieved by high-speed machining.

• �D　The product is automatically measured by the 3D measuring machine.

• �E　The result is feed back to the die.
